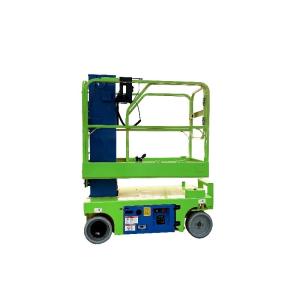

    MD390-1 Fully Oil-Free Self Propelled Vertical Lift

    Ask Lasest Price
    Brand Name : CHENLIFT
    Certification : CE
    Model Number : MD390-1
    Price : Negotiable
    Delivery Time : 30 days
    Payment Terms : T/T L/C
    Supply Ability : 200 sets/month
    • Product Details
    • Company Profile

    MD390-1 Fully Oil-Free Self Propelled Vertical Lift

    Product Description:

    CHEN LIFT launched a range of fully oil-free machines ,comprising vertical mast lifts with no hydraulic oil

    Standard Configuration:

    ▲Proportional Joystick Control

    ▲Forklift Slot

    ▲Drivable At Full Height

    ▲Emergency Stop Button both on PLatform and Ground

    ▲Electric Lifting Push Rod

    ▲AC Motor Driving


    ▲Fault Diagnose System

    ▲Dual Wheel with 0 Turning Radius

    ▲Manual Emergency Descent System

    ▲Pothole Protection;Break Release;Zero Emissions

    Optional Configuration:

    ▲AC Power to PLatform

    ▲Platform Working Light

    ▲Extension Platform

    ▲Platform Positioning Laser Lights

    ▲Overloading Sensor

    ▲Wireless Tracking

    ▲Saloon-door Style Entry Gates/Top Open Door

    ▲Electric Picking Tray with Foldable Side Panels and Front Guardrails


    Specification:

    ModelMD390-1
    Platformform Capacity200kg
    Extension Platform Capacity113kg
    Max Platform Height-A5.7m
    Max Working Height7.7m
    Platform Length-B1.5m
    Platform Width-C0.78m
    Extension Length0.5m
    Overall Height(Unfold Guardrail)-D1.99m
    Overall Length(With Ladder)-E1.62m
    Overall Width-F0.8m
    Wheelbase-G1.28m
    Ground Clearance(Raised)-H0.08m
    Ground Clearance(Stowed)-I0.02m
    Travel Speed(Stowed)3.5km/h
    Travel Speed(Raised)0.6km/h
    Turning Radius0.6m/1.8m
    Maximum Working Slope1.5°/3°
    WheelΦ305*100mm
    Power Source2*12V/100AH
    Charger100-240VAC/15A
    Weight1105kg

    MD570 (2)_副本.jpg


    Company Introduction:

    Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
